Time Tilt

Smart ESP based tilt time

Main Code

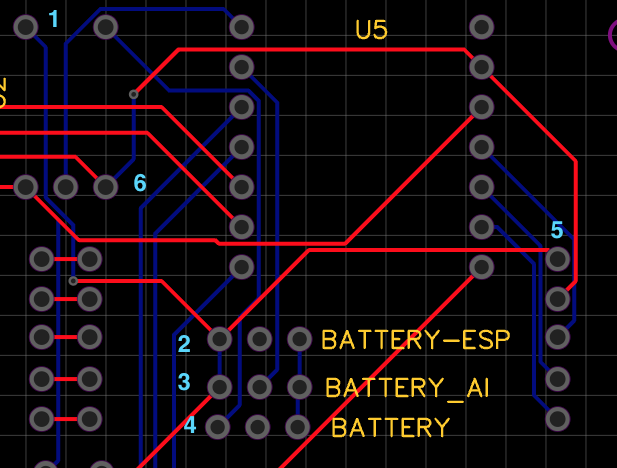

Pinout / PCB

alt text

  1. NC / NO switch that turns on power from battery
  2. Battery ESP.
  3. from left to right:
  4. V_Battery, Blank, GND
  5. BATTERY_AI
  6. meant to measure battery voltage with voltage divider (ie. 2 10k resistors jumping)
  7. V_Battery, V_Battery/2, GND
  8. Battery
  9. V_battery, Blank, GND
  10. MAX LED pins
  11. V_Potentiometer
  12. middle is signal
  13. This was supposed to be rotated

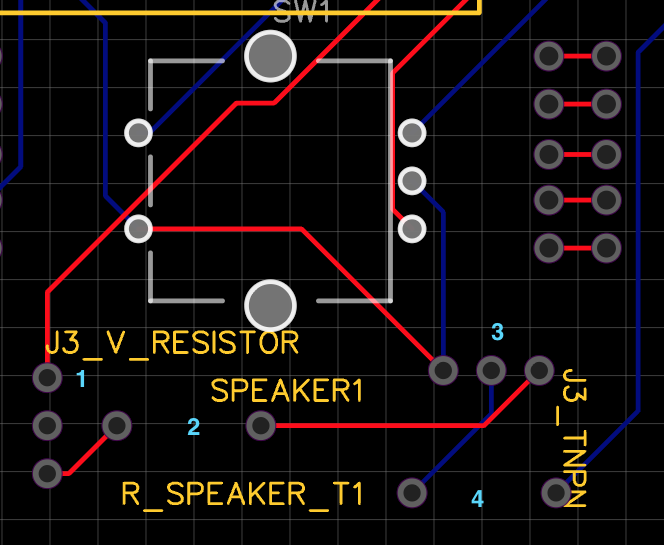

Speaker Portion

alt text

  1. variable resistor meant to control volume...
  2. Speaker
  3. NPN transistor for amplification
  4. current limiting resistor to drive transistor
